@ -0,0 +1,9 @@

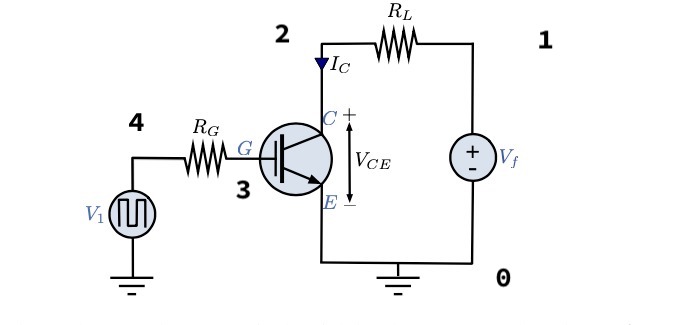

Test for Watts
Vf 1 0 20V
RL 1 2 10
Z1 2 3 0 mymodel
RG 4 3 100
V1 4 0 PULSE(0 5V 1us 0.1u 0.1us 1ms 2ms)
.tran 0.1 10ms
.model mymodel NIGBT
.end
